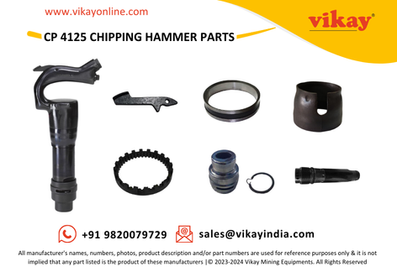

Cp 4125 Chicago Pneumatic Chipping Hammer Parts
SKU ID: Cp4125Parts
Description
Cp 4125 Chicago Pneumatic Chipping Hammer Parts
Cp 4125 Chicago Pneumatic Chipping Hammer Parts is supplied by Vikay Mining Equipments of India. It is used for Chicago Pneumatic Chipping Hammer. Spare parts for this machine are supplied to original specification. Enquire for price and lead time.
Chipping Hammer Cp-4125 Parts
Sr. No | Description | Ref. Part No. |
1 | Handle assembly (Includes | |
item No. 2, 3, 5, 6, 7, 8, 9, 10, 11, 12 & 13) | ||
2 | Plug - Throttle valve | |
3 | Spring - Throttle valve | |
4 | Valve - Throttle complete | |
(Includes item No. 5 & 6) | ||
5 | Valve - Throttle | |
6 | O-ring (-011) | |
7 | Pin - Throttle valve bush | |
8 | Tube - Throttle valve | |
9 | Bushing - Push pin | |
10 | Bushing - Permanent | |
11 | Handle | |
12 | Pin - Throttle lever | |
13 | Lever - Throttle | |
14 | Lid (Ring valve) | |
15 | Valve (Ring valve) | |
16 | Piston (for 2" or 3" stroke version) | |
17 | Piston (for 4" stroke version) | |
18 | Cylinder | |
19 | Sleeve - Chisel (Round) | |
20 | Sleeve - Chisel (Hex) | |
21 | Collar - Lock | |
22 | Shield - Lock | |
23 | Sleeve - Retainer (Includes item No. 24 & 25) | |
24 | Sleeve - Retainer | |
25 | Spring - Lock coil |
