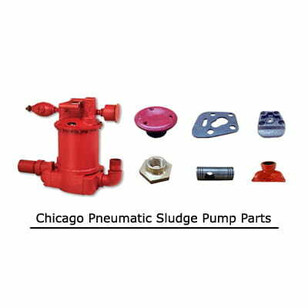

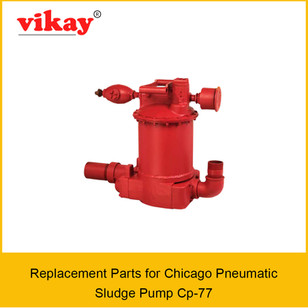

Cp 77 Chicago Pneumatic Sludge Pump Parts

SKU ID: Cp77Parts

Description

Cp 77 Chicago Pneumatic Sludge Pump Parts

Vikay Mining Equipments is a worldwide distributor of OEM quality Cp 77 Chicago Pneumatic Sludge Pump Parts - undefined suitable for undefinedfrom India.

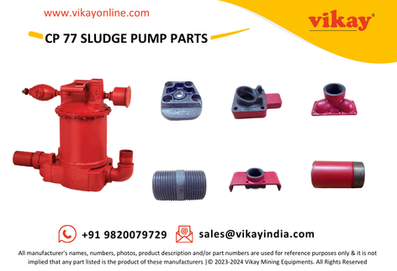

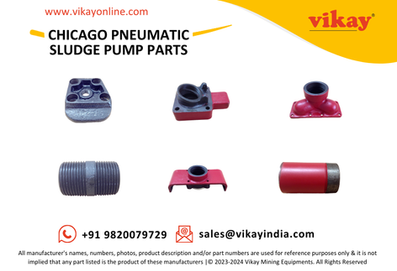

Cp-77 Sludge Pump Parts

Sr. No

Description

Ref. Part No.

1

Plug

2

Upper cylinder cap

3

Upper cylinder gasket

4

Screw

5

Spring washer

6

Socket head screw

7

Spring Washer

8

Grip handle

9

Counter sunk screw

10

Baffle shell

11

Outer plate

12

Muffler shell

13

Inner plate

14

Reducing bushing

15

Barrel nipple

16

Cap screw

17

Top cover complete


(Includes item No. 85, 86 & 87)


18

Ejector tube

19

Ejector nozzle

20

Nozzle pilot plug

21

Nipple

22

Body for oiler

  --

23

Claw coupling

P146991

24

Oil spray gauze

  --

25

Distance washer

  --

26

Rocker pivot

F009027

27

Oil sprayer rocker

  --

28

Oil sprayer regulator

  --

29

Oil sprayer

  --

30

Cap washer for oiler body

31

Cap for oiler body

32

Male adaptor

P146961

33

Control valve Pipe

C065343

34

Rubber buffer

35

Ejector valve complete


(Includes item Nos. 36 & 37)


36

Ejector valve

  --

37

Ejector valve sleeve

  --

38

Ejector valve locater

39

Woodruff key

40

Gasket - Ejector

41

Lower cylinder gasket

42

Dowel pin

S013277

43

Float arm support complete


(Includes item Nos.44,45 & 46)


44

Float arm support

  --

45

Pin

  --

46

Float arm support bracket

  --

47

Spring washer

48

Nut

49

Bolt

50

Nyloc nut

51

Lever arm bushing

52

Lever arm pin

53

Lever arm

54

Control valve

55

Float arm assembly


(Includes item Nos.51 & 56)


56

Float arm

  --

57

Gasket cover

58

Float

59

Nyloc nut

60

Pump body & check valve assembly

F026962

61

Studs

62

Studs for inlet - casting

63

Check valve nut

64

Check valve arm

65

Check valve plate

66

Check valve disc.

67

Check valve washer

68

Check valve bushing

69

Inlet gasket

70

Check valve seat

71

Socket head screw

72

Hinge pin

73

Inlet manifold

74

Hex - Nut

75

Nipple

76

Nipple (NPT - NPT)

R146385

77

Nipple (NPT - BSP) Loose

R146384

78

Steet elbow

79

Outlet casting

80

Outlet - Gasket

81

Pipe plug

82

Hinge pin

83

Outlet valve seat

84

Washer

85

Top cover

  --

86

Control valve bushing

  --

87

Ejector valve bushing

  --

88

Key for sprayer

F009056

89

Oiler complete (Includes item No. 22, 24,25,

Z9601465


 26,27, 28, 29, 30, 31 & 88)


90

Rocker & Sprayer complete

Z9627465


(Includes item No. 24, 25, 28 & 29)
