Piezas TEX 5P Atlas Copco TEX
SKU ID: TEX5PParts
Description
Piezas TEX 5P Atlas Copco TEX
Piezas TEX 5P Atlas Copco TEX lo suministra Vikay Mining Equipments de India. Se utiliza para Atlas Copco TEX 5P martillo cincelador. Los repuestos de esta máquina se suministran según la especificación original. Consulte precio y plazo de entrega.

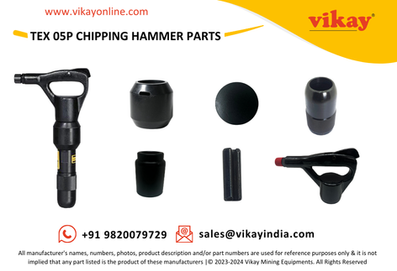

TEX 05P Atlas Copco Chipping Hammer Parts
No. | Description | Part Number | Quantity |
1 | Cap | 1 | |
2 | Buffer | 1 | |
3 | O-ring (ø39.2x3 mm, Included in Repair kit 3310 1208 90) | - | 1 |
4 | Chuck (Hex 19x50 mm) | 1 | |
5(6-7) | Cylinder kit | 1 | |
6 | Cylinder | 3310117700 | 1 |
7 | Pipe (Included in Repair kit 3310 1208 90) | - | 1 |
8 | Piston | 1 | |
9 | Cover | 1 | |
10 | Main valve | 1 | |
11 | Valve housing | 1 | |
12 | Washer (0.7 mm) | 1 | |
13 | Washer (1.0 mm) | 1 | |
14 | Washer (1.3 mm) | 1 | |
15 | O-ring (ø44.2x3 mm, Included in Repair kit 3310 1208 90) | - | 1 |
16(17-24) | Backhead complete | 3310117680 | 1 |
17 | Backhead | - | 1 |
18 | Trigger | 1 | |
19 | Spring pin (ø8x24 mm) | 1 | |
20 | Parallel pin (ø8x80 mm) | 1 | |
21 | Inlet valve (Included in Repair kit 3310 1208 90) | - | 1 |
22 | Inlet valve rod | 1 | |
23 | Spring (Included in Repair kit 3310 1208 90) | - | 1 |
24 | Nipple | 1 | |
25 | Exhaust deflector | 3310120400 | 1 |
26 | Label | - | 1 |
27 | Label | - | 1 |
28 | Data plate | - | 1 |
29 | Drive screw (ø2.5x6 mm) | 2 |
Working tools
Hex 19x50 mm (¾"x2")
No. | Description | W (mm) | L (mm) | Part number |
1 | Moil point | - | 240 mm | 3083322000 |
|
| - | 440 mm | 3083322100 |
2 | Narrow chisel | - | 240 mm | 3083322200 |
|
| - | 440 mm | 3083322300 |
3 | Wide chisel | 60 mm | 190 mm | 3083322400 |
4 | Shaft for bush hammer | - | 80 mm | 3083322500 |
6 | Bush hammer, TC head | 40 mm | - | 3083322600 |
7 | Bush hammer, TC head | 40 mm | - | 3083322700 |
8 | Bush hammer, steel head | 32 mm | - | 3083416300 |
Hex 14.7 - Rd. 17.3x60 mm (9⁄16" - 11⁄16"x23⁄8")
No. | Description | W (mm) | L (mm) | Part number |
1 | Moil point | - | 230 mm | 3083320000 |
|
| - | 350 mm | 3083320010 |
2 | Narrow chisel | - | 230 mm | 3083320100 |
|
| - | 350 mm | 3083320110 |
3 | Wide chisel | 60 mm | 175 mm | 3083341000 |
Rd. 17.3x60 mm (11⁄16"x2 3⁄8")
No. | Description | W (mm) | L (mm) | Part number |
1 | Moil point | - | 160 mm | 3083411000 |
|
| - | 235 mm | 3083411010 |
|
| - | 380 mm | 3083411020 |
2 | Narrow chisel | - | 160 mm | 3083411100 |
|
| - | 235 mm | 3083411110 |
|
| - | 380 mm | 3083411120 |
5 | Bushing tool | 50 mm | 170 mm | 3083411400 |
Hex ¾"x2" (19x50 mm)
No. | Description | W (in.) | L (in.) | Part number |
1 | Moil point | - | 9½" | 3083322000 |
|
| - | 17" | 3083322100 |
2 | Narrow chisel | - | 9½" | 3083322200 |
|
| - | 17" | 3083322300 |
3 | Wide chisel | 2⅜" | 7½" | 3083322400 |
4 | Shaft for bush hammer | - | 3⅛" | 3083322500 |
6 | Bush hammer, TC head | 1½" | - | 3083322600 |
7 | Bush hammer, TC head | 1½" | - | 3083322700 |
8 | Bush hammer, steel head | 1¼" | - | 3083416300 |
Hex 9⁄16" - Rd. 11⁄16"x2 3⁄8" (14.7 - 17.3x60 mm)
No. | Description | W (in.) | L (in.) | Part number |
1 | Moil point | - | 9" | 3083320000 |
|
| - | 14" | 3083320010 |
2 | Narrow chisel | - | 9" | 3083320100 |
|
| - | 14" | 3083320110 |
3 | Wide chisel | 23⁄8" | 7" | 3083341000 |
Rd. 11⁄16"x23⁄8" (17.3x60 mm)
No. | Description | W (in.) | L (in.) | Part number |
1 | Moil point | - | 61⁄4" | 3083411000 |
|
| - | 91⁄4" | 3083411010 |
|
| - | 15" | 3083411020 |
2 | Narrow chisel | - | 61⁄4" | 3083411100 |
|
| - | 91⁄4" | 3083411110 |
|
| - | 15" | 3083411120 |
5 | Bushing tool | 2" | 63⁄4" | 3083411400 |
Kits
Complete kit
Description | Part number | Quantity |
Complete kit | 8461021902 | 1 |
Chipping hammer | 8461021900 | 1 |
Short length hose complete | 9030204300 | 1 |
Moil point (Hex 19x50 mm (3⁄4"x2")) | 3083322000 | 1 |
Narrow chisel (Hex 19x50 mm (3⁄4"x2")) | 3083322200 | 1 |
Air oil bottle (0.2 l) | 8099020240 | 1 |
Storage box | 3310120600 | 1 |
Repair kit
Description | Part number | Quantity |
Repair kit | 3310 1208 90 | 1 |
Spring | - | 1 |
Inlet valve | - | 1 |
O-ring (ø39.2x3 mm) | - | 1 |
Pipe | - | 1 |
O-ring (ø44.2x3 mm) | - | 1 |
